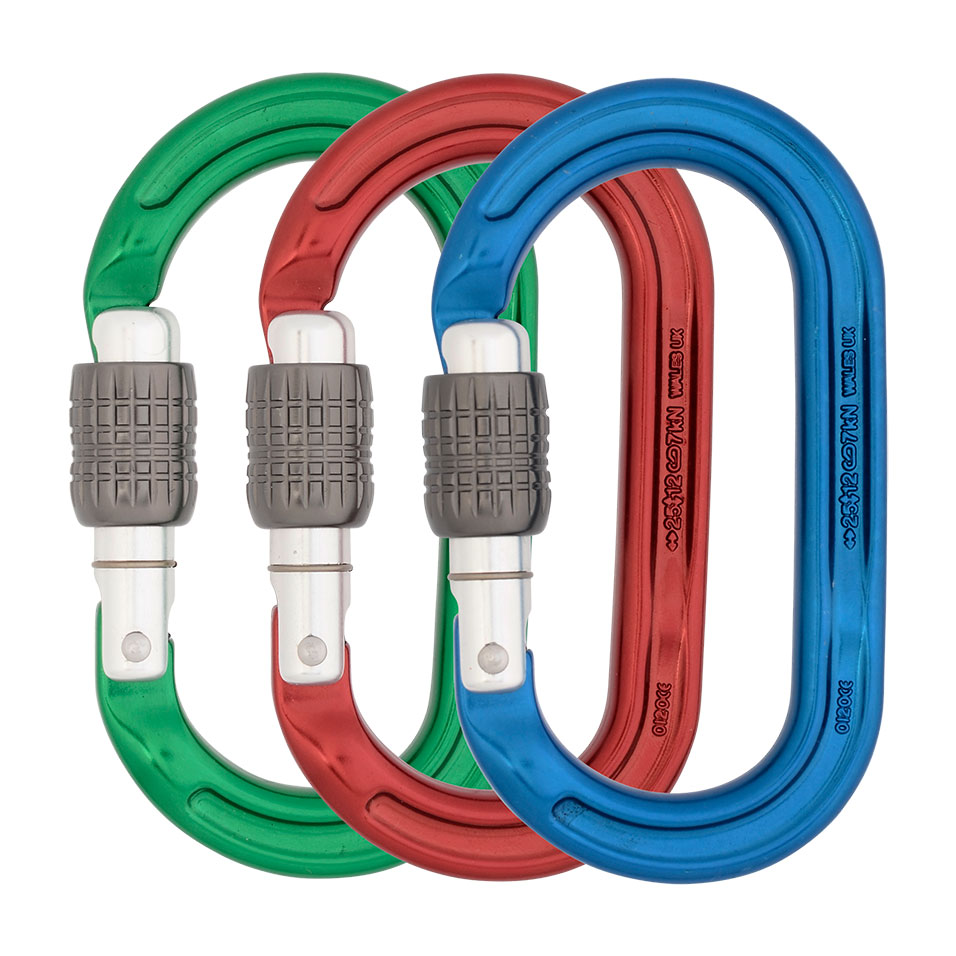

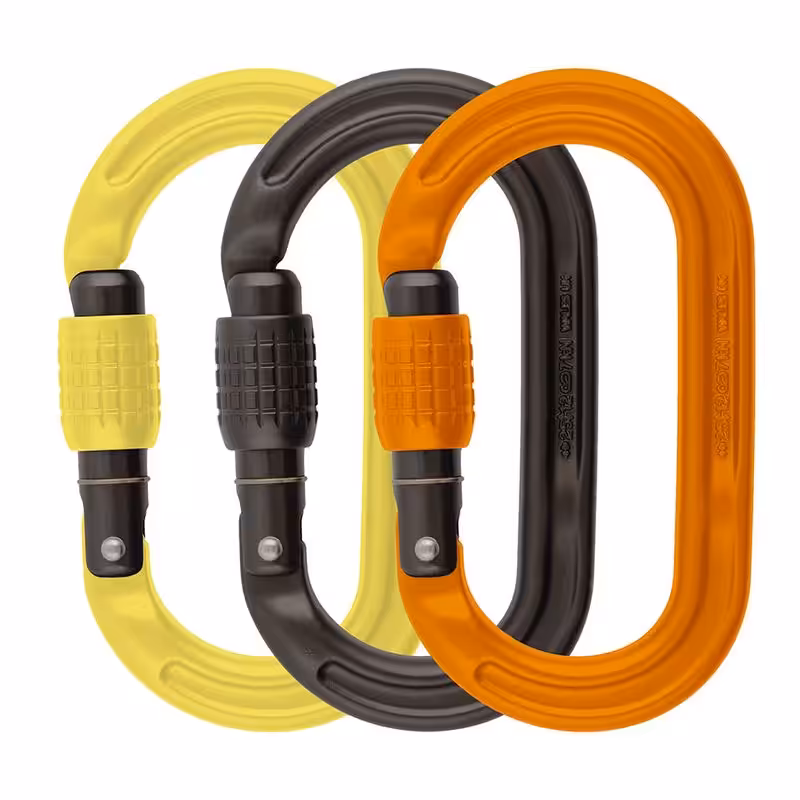

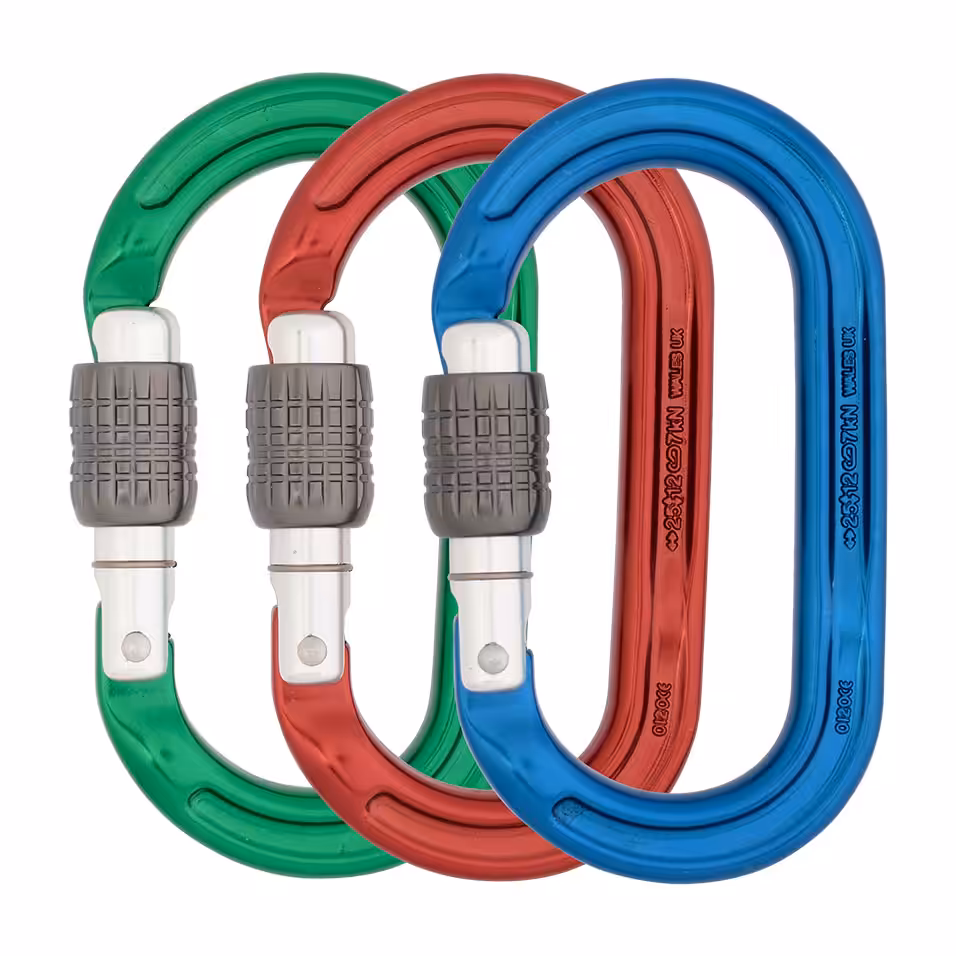

DMM Ultra O Carabiner – Pack of 3
£40.00
100% Secure Checkout
Free Shipping Over £100
Customer Satisfaction
The DMM Ultra O Carabiner – Pack of 3, symmetrical rope baskets are ideal for assisted breaking devices, pulleys, swivels and shackles. They also give stable loading characteristics, as attachments can self-centre under load with minimal movement from the carabiner.
FEATURES
Oval for symmetry; shape allows central positioning of devices
Oval connectors are popular in rope access and tree care situations where multiple connectors, slings, ropes or even pulleys can be connected. They are equally at home in fall arrest situations or as part of a pre-rigged rescue system. The round basket shape allows any of the connection points to self-centre when weighted – this helps avoid the unnerving click that often happens with a more D-shaped connector. The symmetrical basket mean rotation within systems is not required as they sit comfortably either way round.
Keylock clean nose for snag free connection
DMM’s patented ‘Taperlock’ closing mechanism increases gate push-in and cross gate strength using a special flared profile on the nose of the carabiner, as well as allowing a snag free connection for your ropes, slings and devices.
Captive bar option for security
Many of our connectors can be supplied cross-drilled to accommodate captive bars. This means that the lanyard or attachment cannot be removed and ensures that the direction of force applied in the event of a fall is along the major axis of the connector, giving maximum strength and holding power. The captive bars themselves are not for load bearing use.
| Product Name | Product Code | Dimensions | Weight | MBS (Major Axis) | MBS (Minor Axis) | MBS (Gate Open) | Gate Opening | Certification |
|---|---|---|---|---|---|---|---|---|
| Ultra O Screwgate Titanium | A322 | 63 x 109mm | 68g | 25kN | 12kN | 7kN | 22mm | EN362:2004 B EN12275:2013 X/B UIAA121:2009 |
| Ultra O Screwgate Lime | A322LG | 63 x 109mm | 68g | 25kN | 12kN | 7kN | 22mm | EN362:2004 B EN12275:2013 X/B UIAA121:2009 |
| Ultra O Screwgate Matt Grey | A322MG | 63 x 109mm | 67g | 25kN | 12kN | 7kN | 22mm | EN362:2004 B EN12275:2013 X/B UIAA121:2009 |
| Ultra O Screwgate Orange | A322OR | 63 x 109mm | 68g | 25kN | 12kN | 7kN | 22mm | EN362:2004 B EN12275:2013 X/B UIAA121:2009 |
| Ultra O Screwgate Red | A322RD | 74g | ||||||
| Ultra O Screwgate 3 Pack Blue/Red/Green | A322-P3 | 63 x 109mm | 204g | 25kN | 12kN | 7kN | 22mm | EN362:2004 B EN12275:2013 X/B UIAA121:2009 |
| Ultra O Screwgate 3 Pack Lime/Grey/Orange | A322-P3A | 63 x 109mm | 204g | 25kN | 12kN | 7kN | 22mm | EN362:2004 B EN12275:2013 X/B UIAA121:2009 |
